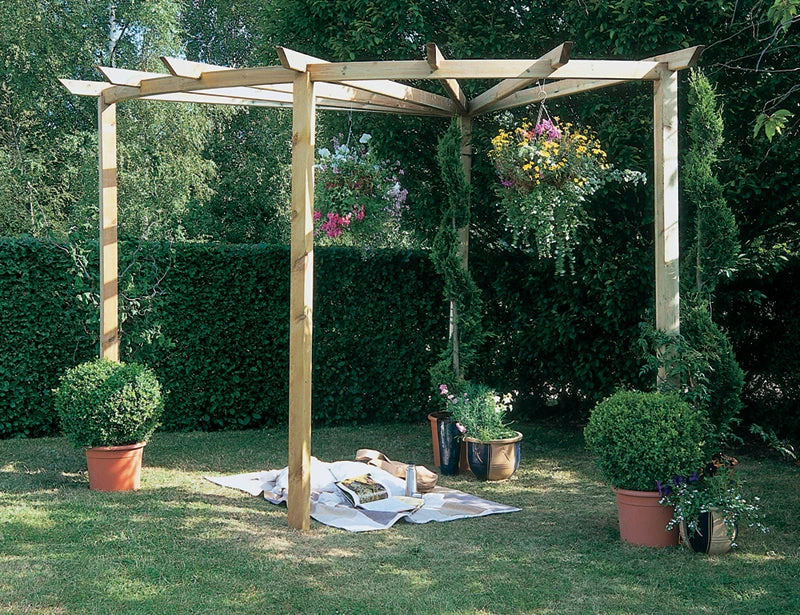

Forest Garden Radial Pergola

Manufactured from – long-life, pressure treated timber with a 15 year anti-rot warranty. The timber is FSC certified – this means the timber used comes from properly managed forests and controlled sources.

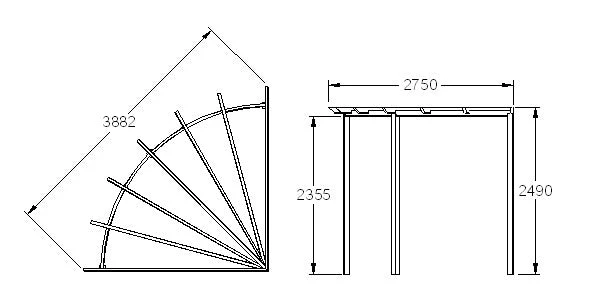

Overall dimensions when assembled, including overhangs:
Height: 8ft 2 inches / 249cm
Width: 9ft / 275cm
Depth: 9ft / 275cm

Footprint dimensions:
Width at base: 9ft / 275cm
Depth at base: 9ft / 275cm
Eaves height to overhang: 7ft 8¾” / 236cm

 Thickness of posts 95mm x 95mm
 Thickness of rafters 48mm x 95mm

 The pergola covers a quarter circle (90 degrees) based on a radius of 250cm.

Supplied for self-assembly: you will need to use a tape measure, drill (with 2-3mm drill bits), pozi drive screwdriver, spirit level and a hammer. You will need to pre-drill the holes prior to assembly.  Fixings and Instructions are included for a simple self-assembly.

Made in Poland

Delivery: please allow 8-9 weeks for delivery.

Please allow 8-9 weeks for delivery.  Forest will send an email confirming your order, you will then receive a text (if a mobile number has been provided) or a call to advise a delivery date and ETA this is usually 48 hours before delivery.

Please Note: unfortunately, these items cannot be delivered to Isle of Wight, Northern Ireland or any other Offshore Islands.

Click Here to see details for assembling this pergola.
